ULTRA X6000
The ULTRA X6000 platform offers laser material processing for the widest possible range of materials. Configure the customizable ULTRA X6000 platform with up to three laser sources consisting of two interchangeable CO2 lasers and one fiber laser. When the platform is configured with three lasers, users can take full advantage of MultiWave Hybrid technology™ enabling up to three wavelengths - 9.3 μm, 10.6 μm, and 1.06 μm - to be simultaneously combined into a single coaxial beam. Each spectral component of the beam is independently controlled and can be modulated in real-time.
ULTRA X6000 Features:
- Multiple Laser Support - Up to 3 laser sources can be used individually or in combination
- Rapid high-accuracy laser beam positioning
- Precision Material Independent Autofocus - A motorized Z-axis and high-resolution touch sensor with repeatability of +/- .001 in (25 μm)
- Controllable Laser Power Density - Provides the ability to control laser power densities while maintaining a high degree of alignment accuracy of the focus plane with the material surface as well as a Gaussian beam distribution
- Automation Interface - An addressable device that can receive input signals and provide output signals. Enables the laser system to control external devices and allows external devices to initiate laser system functions
- Camera Registration - A feature that aligns a control file to registration marks or features on the surface of a material. Compensates for scale, skew, and perspective
- 21" Integrated Touch Screen Control Panel - Eliminates the need for a separate control computer
- Over-temperature Detection - A safety features designed to disable all laser sources, home the motion system, and trigger an audible alarm in the event it detects an unusually high temperature in the laser processing area
- Fire Suppression* - A patented accessory that deploys fire suppressant into the laser material processing area if self-sustained combustion is detected *Optional

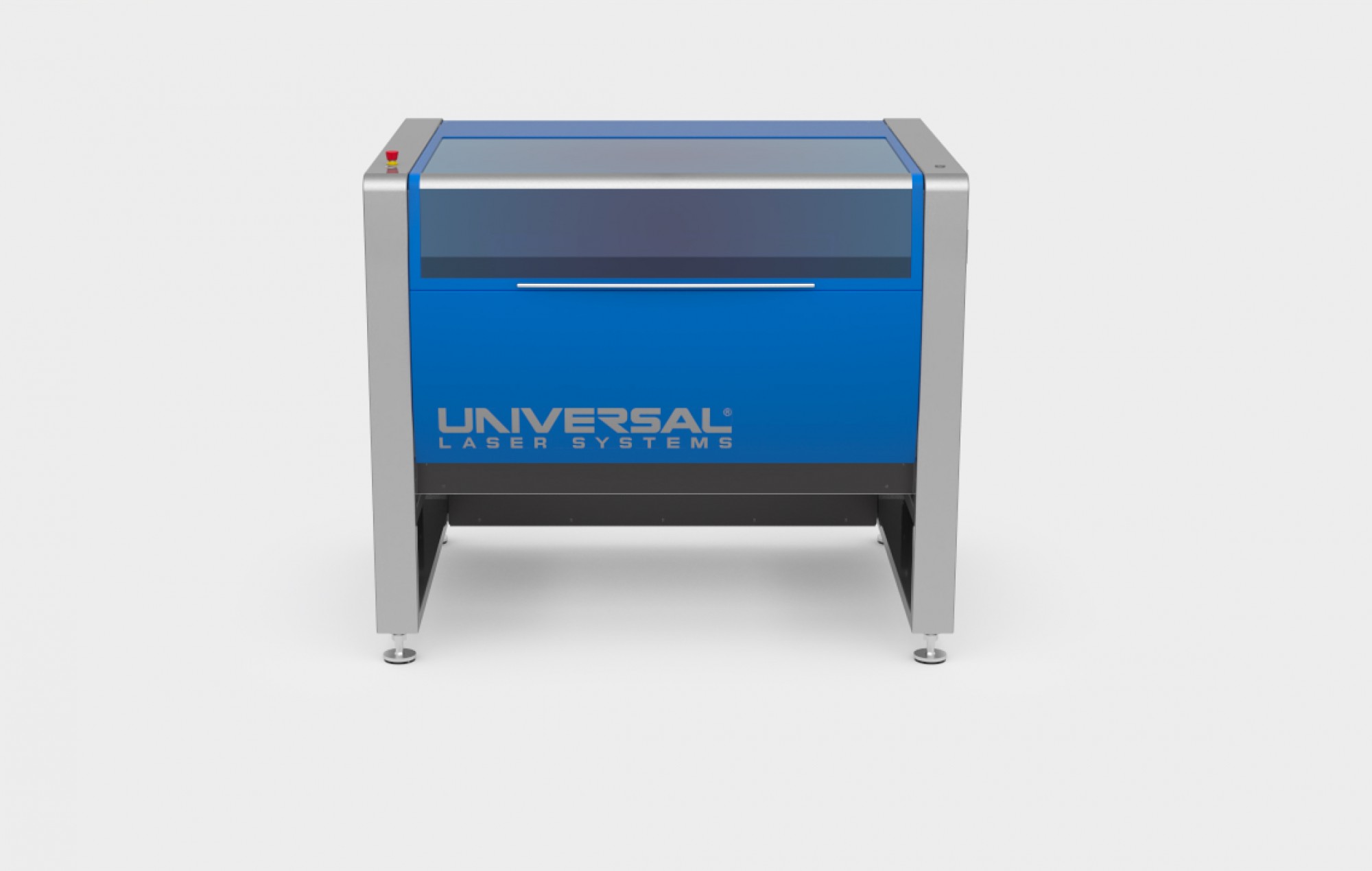

ULTRA R5000
The ULTRA R5000 platform offers laser material processing for a wide range of materials. With its unique modular architecture, customizable solutions can be easily reconfigured with a wide array of options for enhancing performance, capability, and safety. Configure the customizable ULTRA R5000 platform with up to two laser sources consisting of two interchangeable CO2 lasers or one CO2 laser and one fiber laser. When the platform is configured with two lasers users can take advantage of MultiWave Hybrid technology™ enabling up to two of three wavelengths from 9.3 µm, 10.6 µm, and 1.06 µm - to be simultaneously combined into a single coaxial beam. Each spectral component of the beam is independently controlled and can be modulated in real time.
ULTRA R5000 Features:
Multiple Laser Support
Rapid Laser Beam Positioning
Precision Material-Independent Autofocus - A motorized Z axis and high-resolution touch sensor with repeatability of +/- .005 in (125 µm)
Controllable laser power density - Provides the unique ability to control laser power densities while maintaining a high degree of alignment accuracy of the focal plane with the material surface as well as a Gaussian beam distribution.
Automation Interface* - An addressable device that can receive input signals and provide output signals. Enables the laser system to control external devices and allows external devices to initiate laser system functions *Optional
Multi-Camera Vision & Registration* - Provides an augmented reality user interface by superimposing design files on images of the material placed on the material support surface and captured by multiple cameras built into the laser system. The AR user interface facilitates precise alignment of design files using controls that allow the design file to be positioned, rotated and scaled with real time visual feedback made possible through advanced machine vision algorithms. This feature also supports traditional camera registration work flow using printed registration marks. *Optional
Overtemperature detection - A safety feature designed to disable all laser sources, home the motion system, and trigger an audible alarm in the event it detects an unusually high temperature in the laser processing area
Multi-Wave Hybrid™ Technology* - Enables a combination of laser wavelengths (up to two wavelengths for ULTRA R5000 and three wavelengths for ULTRA X6000) to be focused to the same focal point within the same focal plane and used with sequentially or simultaneously *Optional
21" Touch Screen Control Panel* - A fully integrated 21" (533 mm) touch panel command and control console used to control laser system operation *Optional
Support for Fire Suppression* - A patented accessory that deploys fire suppressant into the laser material processing area if self-sustained combustion is detected *Optional
| |  |  |
| | ULTRA X6000 | ULTRA R5000 |
| Material Processing Envelope | 36 x 24 x 12 in (914 x 610 x 305 mm) | 32 x 24 x 12 in (813 x 610 x 305 mm) |
| Max Lasers Supported | (2) CO2 Lasers and (1) Fiber Laser | (2) CO2 Lasers -or- (1) CO2 and (1) Fiber Laser |
| Max Laser Power | 250* watts CO2 and 50 watts Fiber | 150 watts CO2 -or- 125* watts CO2 and 50 watts Fiber |
