Powerful Desktop CNC Milling Machine + Professional Industrial Control

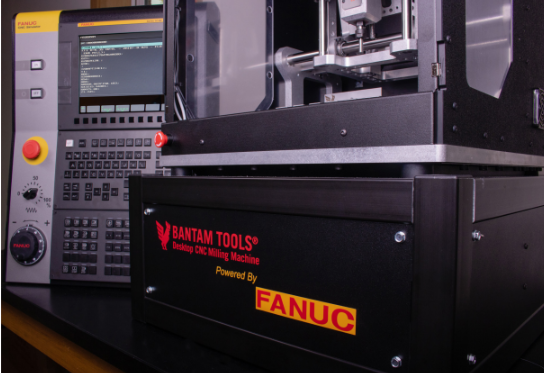

The Bantam Tools Desktop CNC Milling Machine Powered by FANUC is a compact and versatile machine. It is designed with industrial controls to build CNC machining skills, and for experienced machinists who want a powerful tool for prototyping.
With the Bantam Tools Desktop CNC Milling Machine Powered by FANUC, you get the full CNC experience using the same control system that can be found on over 5 million CNC machines worldwide, without having to buy an expensive, industrial-sized machine.
Bantam Tools and FANUC are empowering the next generation of machinists to innovate for a better world. Join us in closing the skills gap by ordering yours today.
Control
FANUC Series 0i-F Plus
Axis Drive Motors
FANUC Industrial Servo Motors and Drives
Enclosure
Pre-assembled, fully enclosed, powder-coated steel and ABS
Overall Dimensions
Mill and Riser: 19-5/8” W x 21-7/8” D x 32-1/16” H (500mm W x 555mm D x 814mm H)
Controller: 16-7/8” W x 7.5” D x 24” H (429mm W x 190mm D x 609mm H)
System Weight
Mill and Riser: 161.2 lb
Control: 25.6 lb
Build Volume
7” x 9” x 3.3”
Max Traverse
315 in/min (8000 mm/min)
Spindle Speed
10,000 - 28,000 RPM
Spindle Motor Power
250W
Tool Holder
ER-11 Collet
Largest Shank Size
1/4”
Repeatability
0.0005”
Power Requirements
110-240 VAC 50/60Hz 350W
Recommended Max Roughing MRR in 6061 Aluminum
.8 cubic inches per minute
