AB-Rockwell Controllogix Workstation (Level 2)

View Quote
Add to Quote

ControlLogix Workstation (Level 2) - ControlLogix Fundamentals and Troubleshooting / Programming Curriculum and Workstation

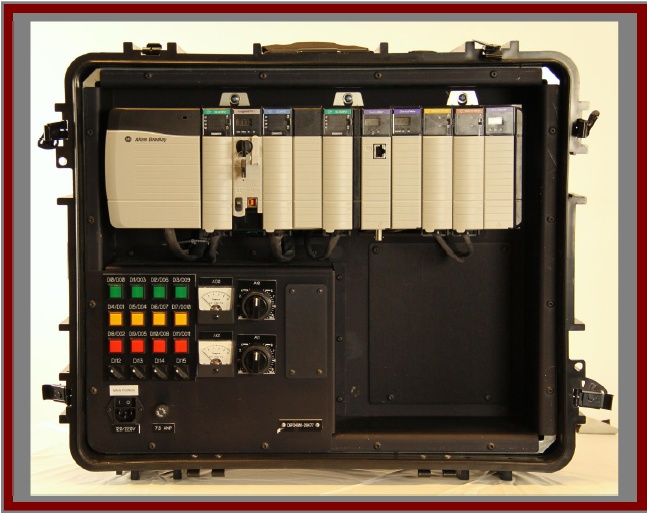

The ControlLogix Workstation is designed to practice those job tasks that are frequently performed on the plant floor. The workstation is designed to be used as an aid for strengthening and maintaining skill sets. The workstation offers a means to simulate the same control schemes running through a plant. This workstation includes a 10-slot I/O chassis for module expansion and flexibility.

As students learn about ControlLogix controllers and components, hands-on exercises will allow students to practice how to:

  • Identify and locate the components of a programmable control system
  • Download programs to a ControlLogix controller
  • Develop troubleshooting skills needed to assess abnormal conditions in a working system

Engaging student materials, classroom discussions, lab exercises, and supplemental videos, podcasts, web links, and demonstrations, combine to give students a highly interactive classroom experience. The variety of learning resources and integrated activities in this class will give students a solid troubleshooting foundation and prepare them for more advanced automation-related courses.

Learning Activities and Features

This course includes various learning activities and features, including:

  • Lab Exercises - Students will gain hands-on experience with the ControlLogix controller and components by using the workstation
  • Animation - Students will view an animation to enhance concepts and provide real-world examples
  • Web links - Students will be able to access supplemental information on their own using a computer or smartphone

Course Prerequisites:

As a prerequisite to this course, students must have basic working knowledge of safe electrical practices.

This includes but is not limited to the following:

  • Understanding electricity, how it works, and the dangers associated with electricity
  • Use of appropriate personal protective equipment (e.g. eye protection, gloves, etc.)
  • Identifying hazardous conditions
  • Adhering to all safety regulations



Industry Recognized Credential Achieved:

 Allen Bradley ControlLogix Maintainer Certificate

 Allen Bradley ControlLogix Programmer Certificate



ControlLogix Workstation includes:

Network Hardware:

  • 1 EtherNet/IP module
  • 1 ControlNet bridge module
  • 2 ControlNet taps
  • 2 terminators

Control Hardware:

  • 1 10-slot I/O chassis
  • 1 1756 system power supply
  • 1 ControlLogix controller
  • 1 DC input module
  • 2 DC output module
  • 1 analog input module
  • 1 analog output module

Operator Interface Panel:

  • 12 illuminated pushbuttons
  • 2 potentiometers
  • 2 analog voltmeters

Supporting Allen Bradley/Rockwell Automation Curriculum

Instructor Curriculum & Lab Books

-- ContolLogix Fundamentals and Troubleshooting (TCT-1756FT-TIP)

-- ControlLogix Programming (TCT-1756P-TIP)

Student Curriculum & Lab Books

-- ContolLogix Fundamentals and Troubleshooting (TCT-1756FT-TSP)

-- ControlLogix Programming (TCT1756P-TSP)

Rockwell Automation Tool Kit (9398C-EDCTKIT1B)

ControlLogix Troubleshooting Guide (ABT-1756-TSJ20)



Course Length - (This course can be delivered within a college semester or two college quarters)

  • Lecture: 17 hours
  • Lab: 25-30 hours

Dimensions

  • Width: 20 in (51 cm)
  • Height: 16 in (41 cm)
  • Depth: 9 in (23 cm)
  • Weight: 70 lbs. (33 Kg)
